The Wio Terminal from Seeed is, at heart, an Arduino.
But "the package"... the hardware and the software... is so much MORE! (^_^)
This page merely scratches the surface of something which, to some, will be huge. Personally? I am still wandering delightedly dazed in the corridors of some of the OTHER treats in the Wio Terminal. I haven't done anything with the 40-way connector on the back of the Wio Terminal, yet.
But these pages (there's an index/ table of contents/ homepage) are meant to be a general independent "Wio Terminal resource", and the 40 pin terminal could not go entirely unrepresented, even in these early days.
The Seeed marketing pages tell us that this connector allows us to use the Wio Terminal as a "Raspberry Pi as a slave device", and (alternatively) the connector allows us to use some Raspberry Pi add-ons.
I would be careful... there's a lot going on, and while I take the statement to be in good faith, I doubt that every Pi add-on can be plugged into a Wio Terminal seamlessly. Is every pin on the 40 pin connector both electronically, and in respect of the software affecting it identical to that pin in a Raspberry? Seems a wonderful ambition... but also seems a big ask.
("RPI": Raspberry Pi)

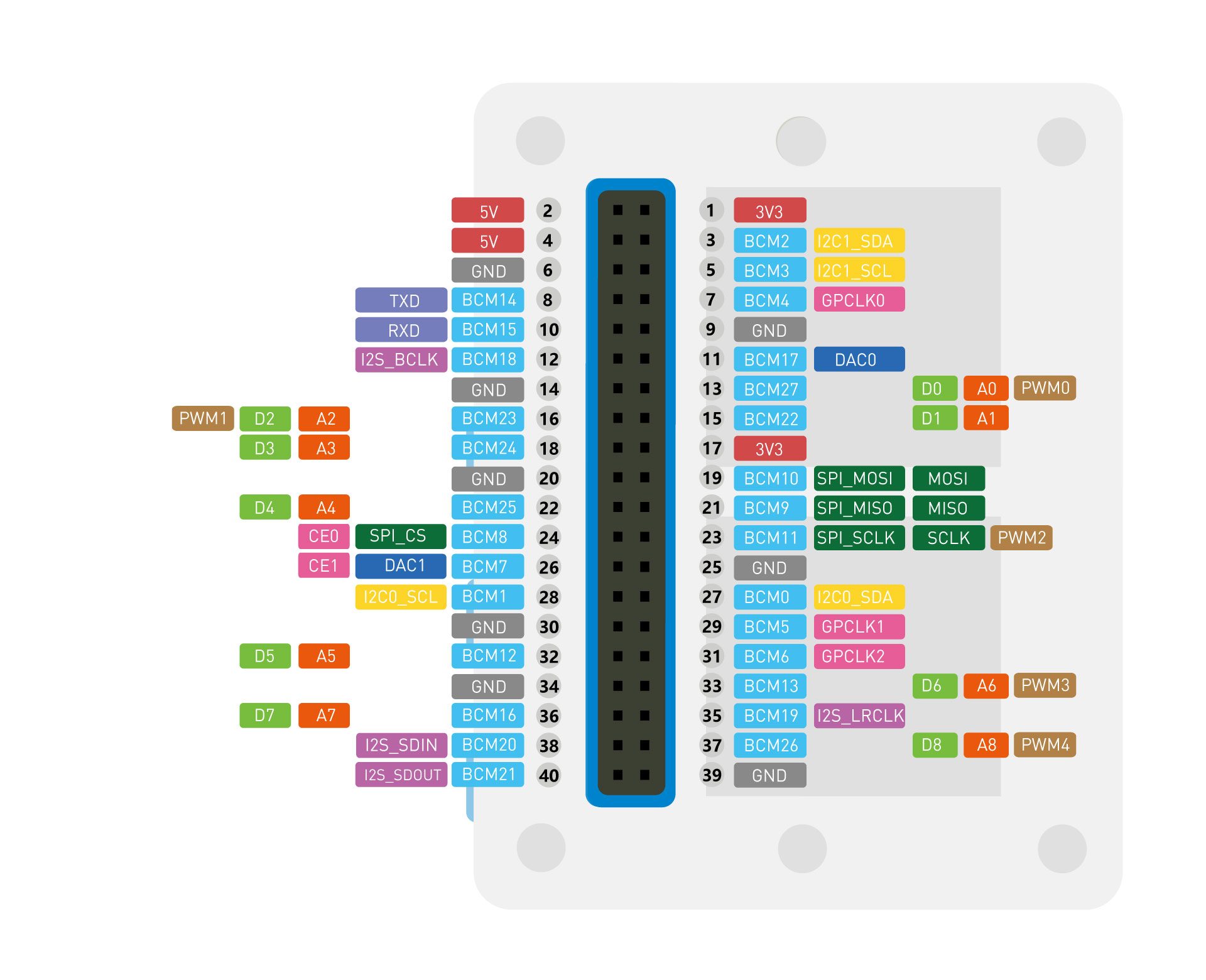

The following was copied from a page of https://wiki.seeedstudio.com on 3 Jan 2022. If you open the image in a new tab (Firefox: Right-click on the image), it is easier to read.
Please get in touch if you discover flaws in this page. Please cite the page's URL. (http://wywtk.com/ardu/wioterm/wio-term-40pin.htm).
